| Project Specification | Details | |
|---|---|---|

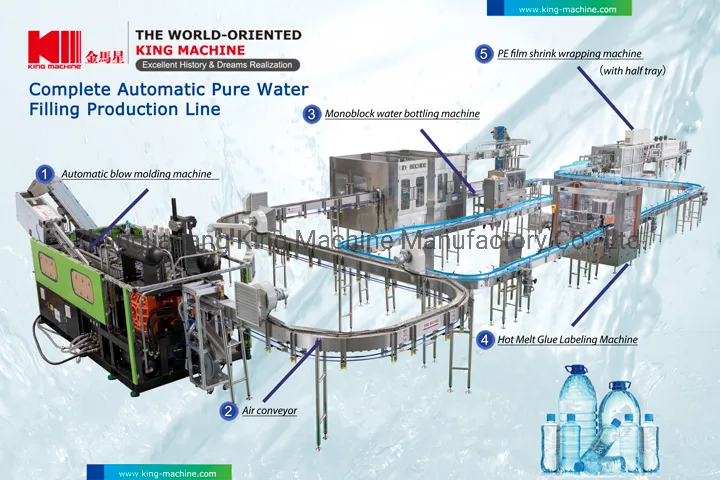

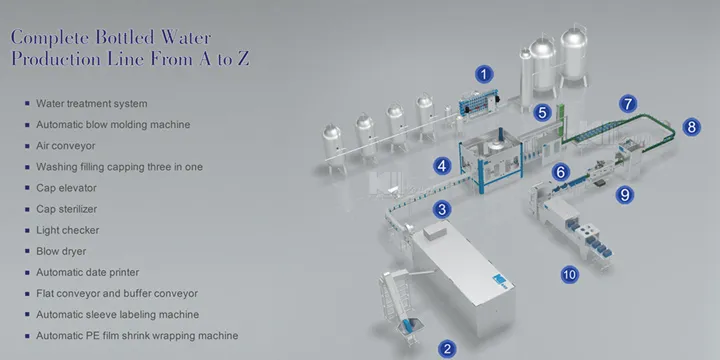

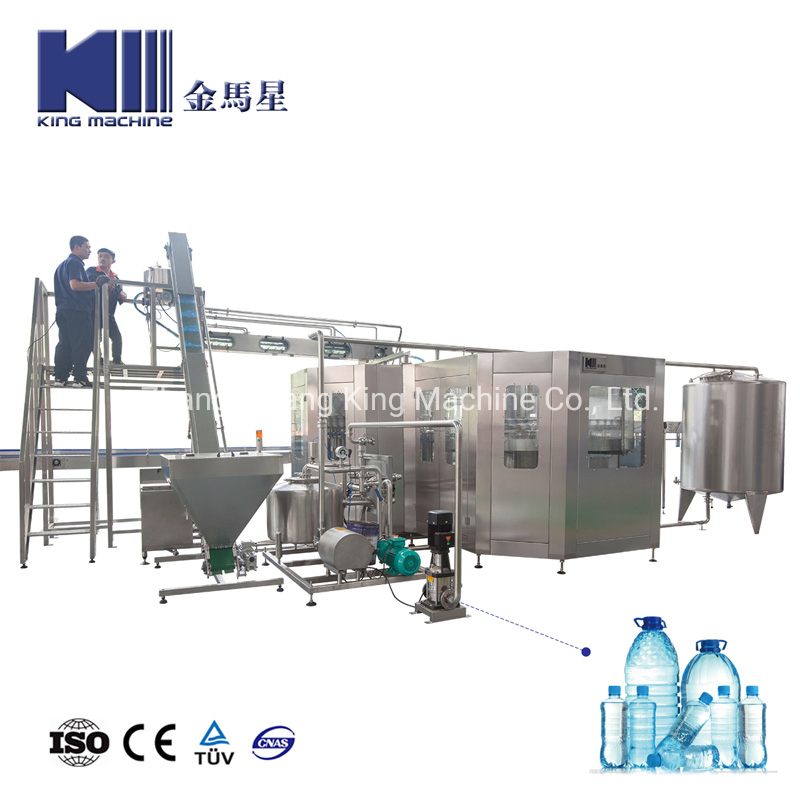

| Project Name | Full Automatic Complete Mineral Water 2000-20000bph Production Line | |
| Containers | PET Bottle | Square or Round Bottle (100-2000ml) |

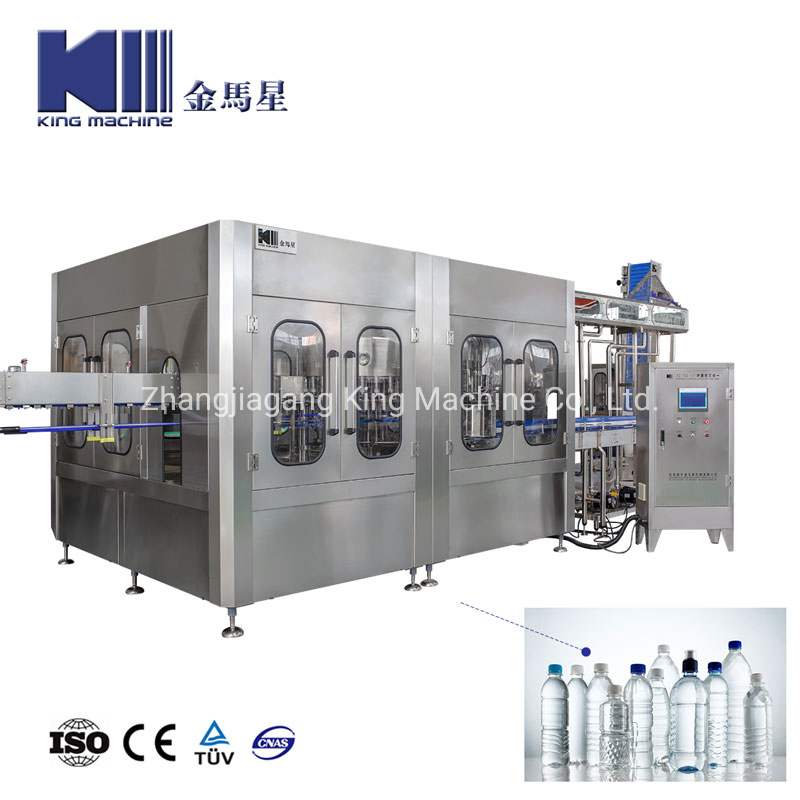

| Filling System | Washing, Filling, and Sealing Integrated System | |
| Bottle Dimensions | Diameter ≤105mm, Height ≤335mm | |
| Power Supply | Voltage: 380V±5%, 3 phase; Frequency: 50HZ±1% | |
| Ambient Conditions | Temperature: 10~40ºC; Humidity: No dew | |

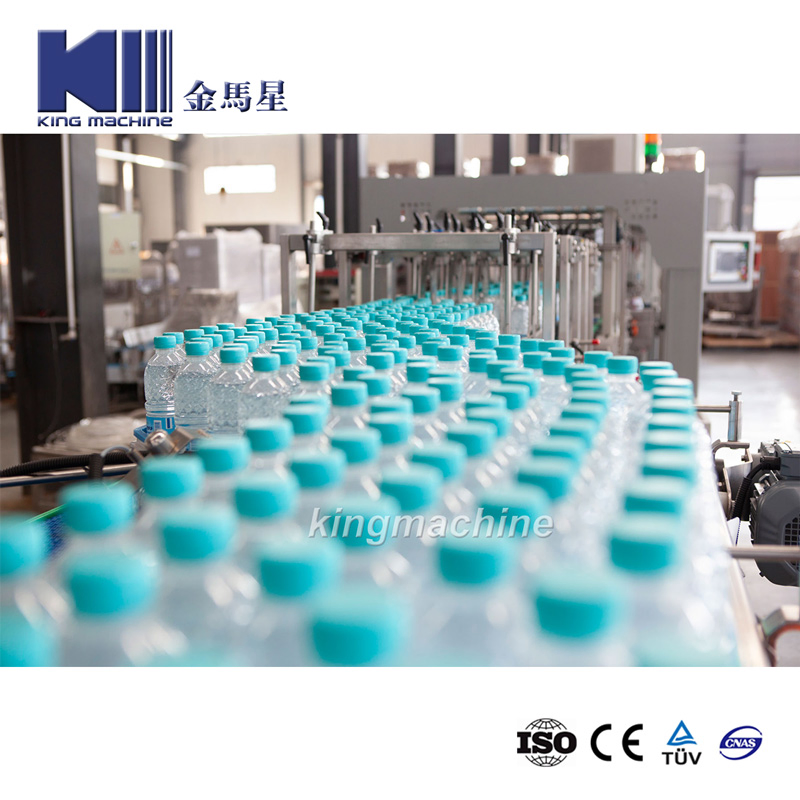

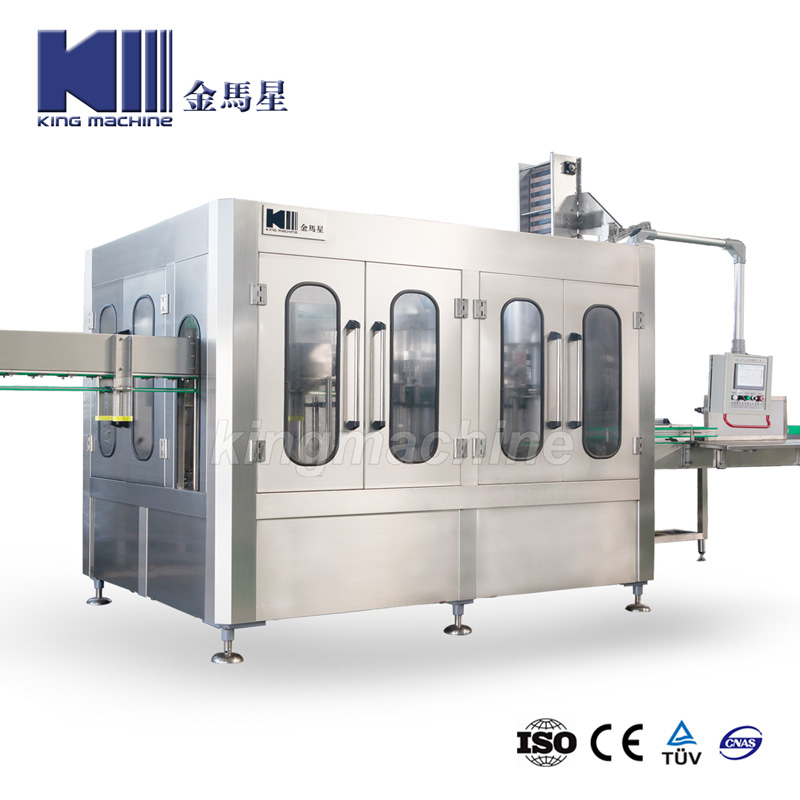

Washing & Filling System

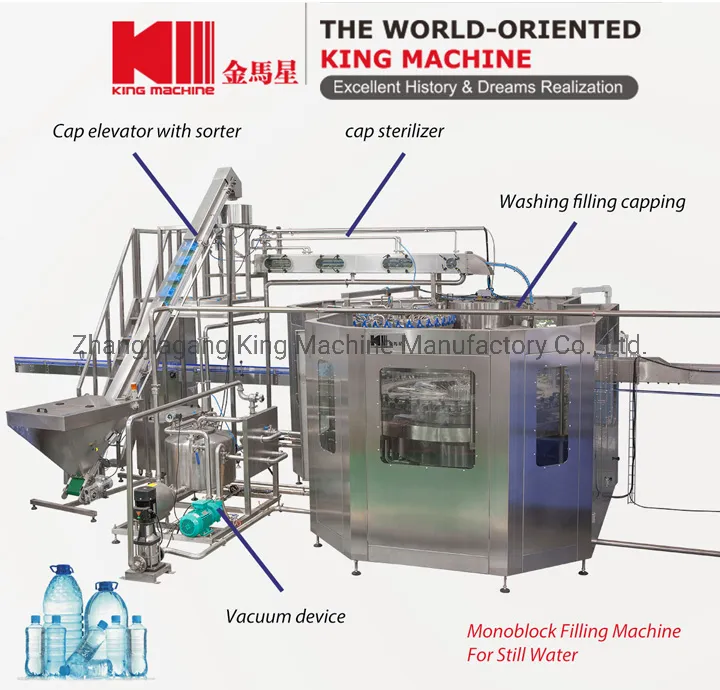

High Speed Filling Valve

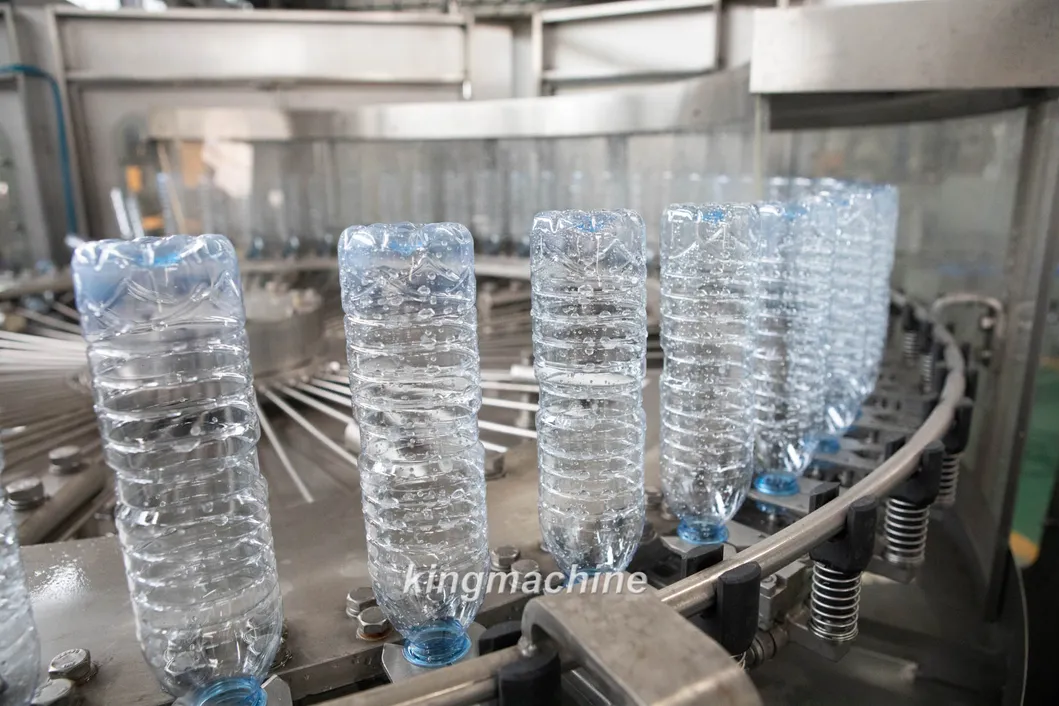

Rotary disk made of SUS304 stainless steel. Features efficient spray nozzles to clean all parts of the inner bottle wall while saving water.

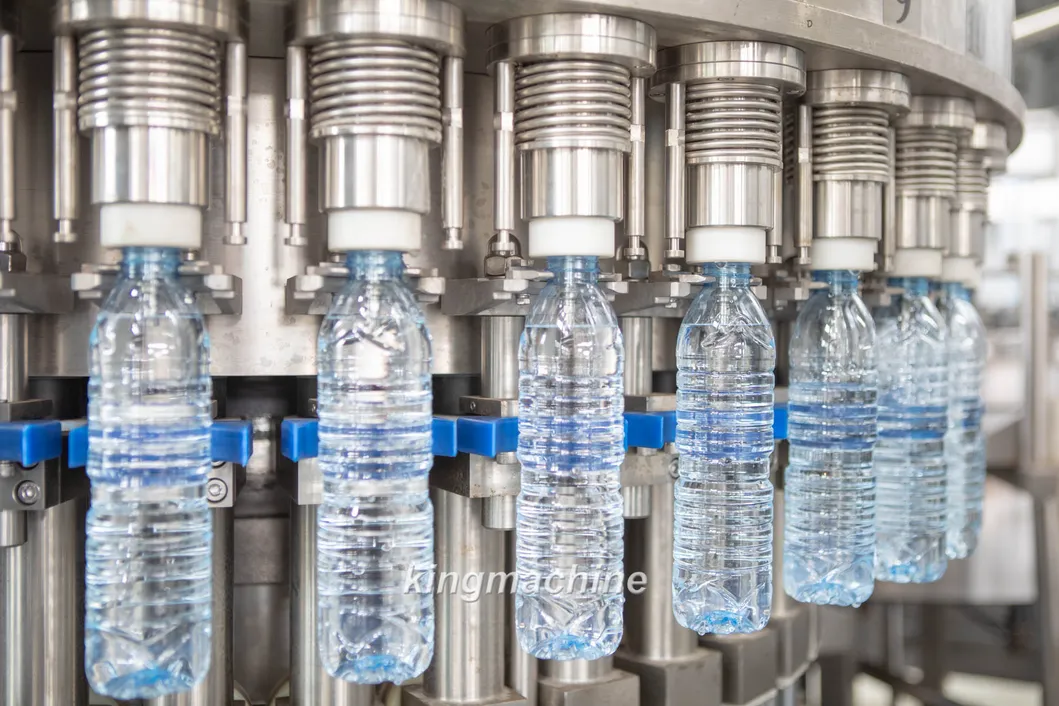

Utilizes gravity filling with high-accuracy SUS304 valves. Designed for precise filling quantities and zero liquid loss.

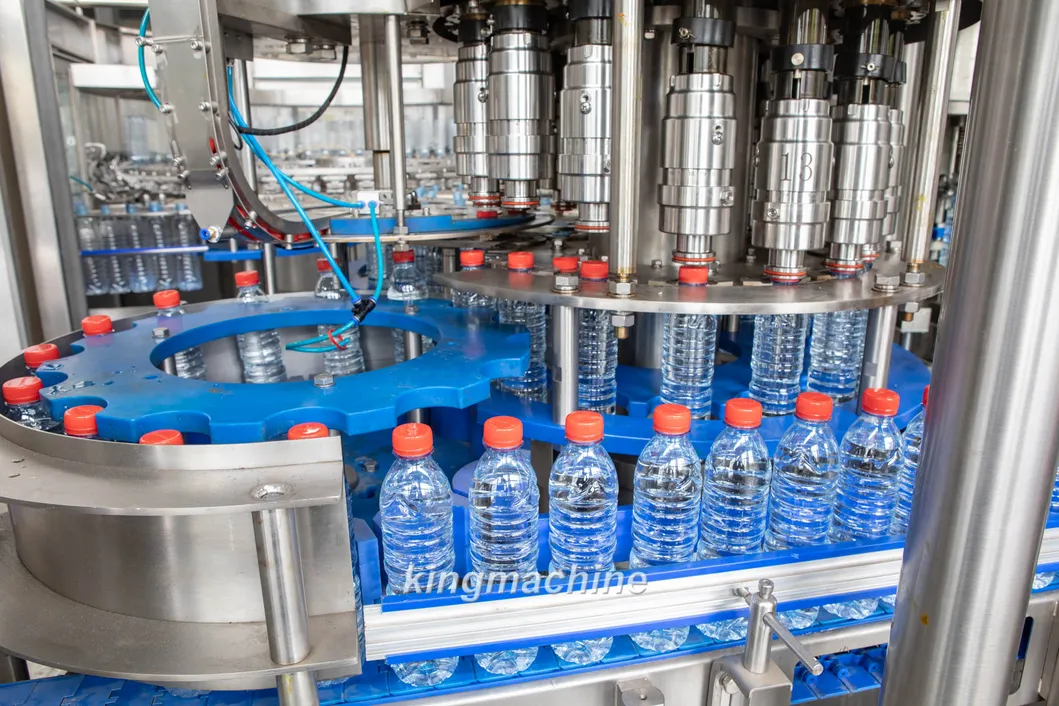

High-precision capping system introduced from advanced Italian technology, ensuring the lowest defective rate in sealing.
| Model | Capacity (BPH) | Power (KW) | Weight (KG) |
|---|---|---|---|
| CGF8-8-3 | 1,000 - 2,000 | 4.4kw | 2500kg |
| CGF14-12-4 | 2,000 - 4,000 | 4.4kw | 3200kg |
| CGF18-18-6 | 6,000 - 8,000 | 4.4kw | 4000kg |
| CGF24-24-8 | 8,000 - 12,000 | 5.2kw | 4500kg |
| CGF32-32-10 | 13,000 - 15,000 | 6.2kw | 6500kg |
| CGF40-40-12 | 16,000 - 18,000 | 7.8kw | 8000kg |

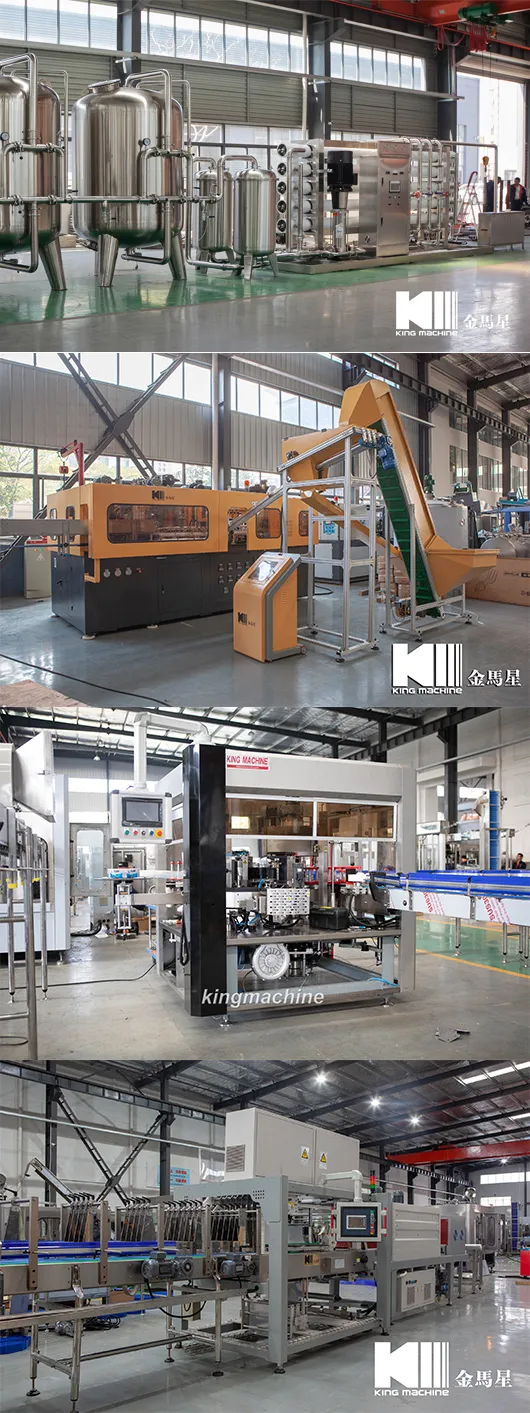

Includes silica sand filters, active carbon filters, and RO systems to meet fresh drinking water standards.
High mechanical strength and precise measurements for bottle mouth and threads.
Economical models for mass production using hot melt glue or PVC shrink labels.
Installation & Debug: We provide seasoned technicians for equipment setup and test production.
Technical Training: We offer comprehensive training on structure, maintenance, and operation.
Quality Guarantee: 12 months warranty on all new equipment with lifelong technical support.
A: The machine is suitable for PET bottles ranging from 100ml to 2000ml, including both round and square bottle shapes.
A: We offer various models ranging from 2,000 bottles per hour (BPH) up to 18,000 BPH for standard 500ml bottles.
A: Yes, we provide a complete turnkey solution that includes RO water treatment systems (filtration, carbon filters, UV sterilizers, etc.).
A: We offer a 1-year quality guarantee and provide life-long technical support for all our machines.
A: Depending on the order complexity, installation usually takes between 10 to 25 days with the help of our engineers.
A: Yes, we use high-quality components from internationally recognized brands such as Mitsubishi, Schneider, and OMRON.
