Basic Information
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging Container Lifting
Pneumatic Lifting
Packaging Material
Plastic
Processing Material
Water, Juice, Carbonated Drink, Oil, etc
Electric Components
Siemens, Mitsubishi, etc
Bottle Volume
200ml-2000ml
Capacity
2000bph to 20000bph
Product Description

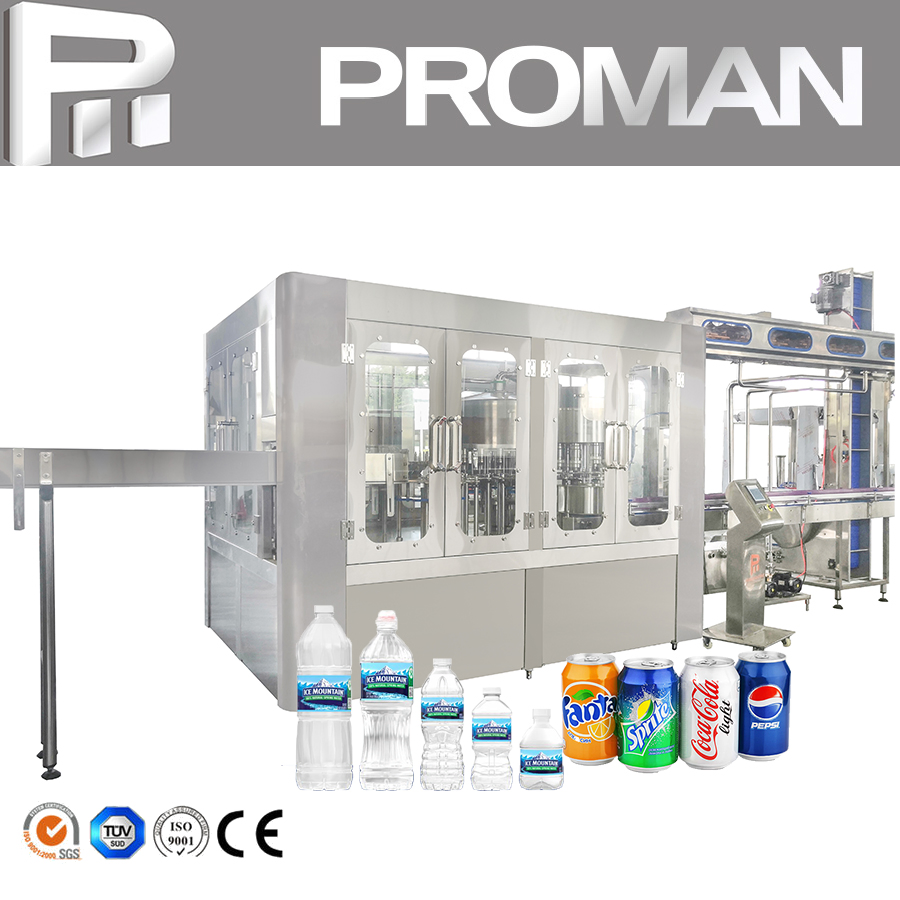

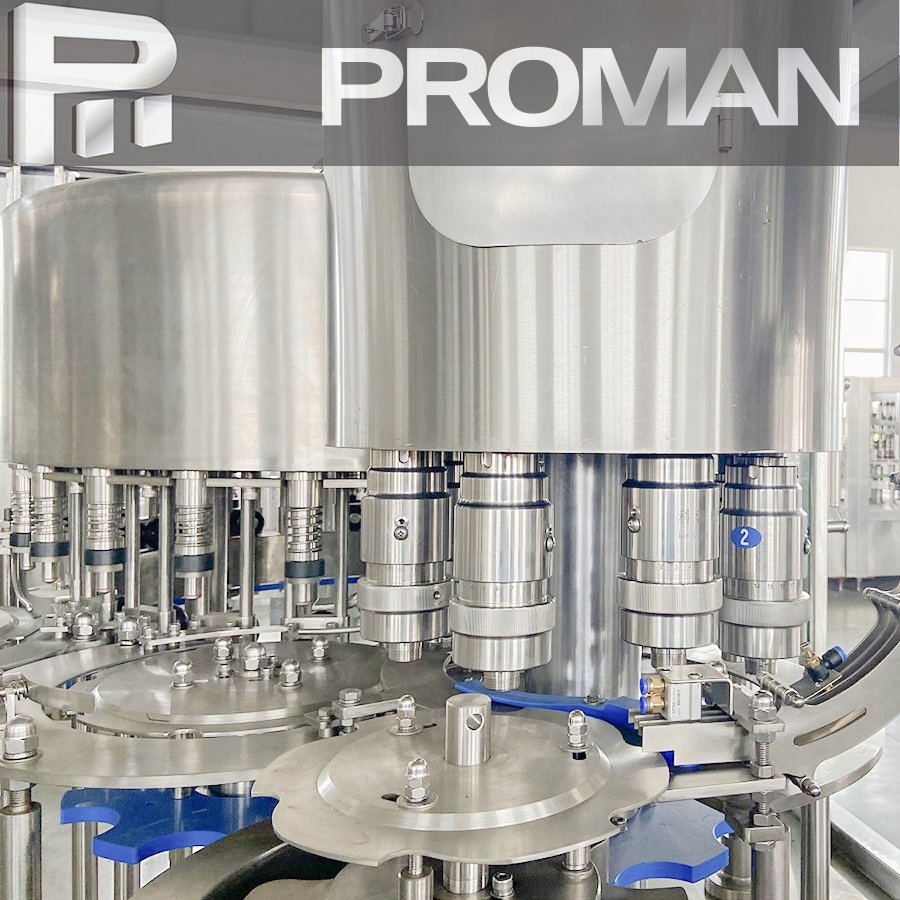

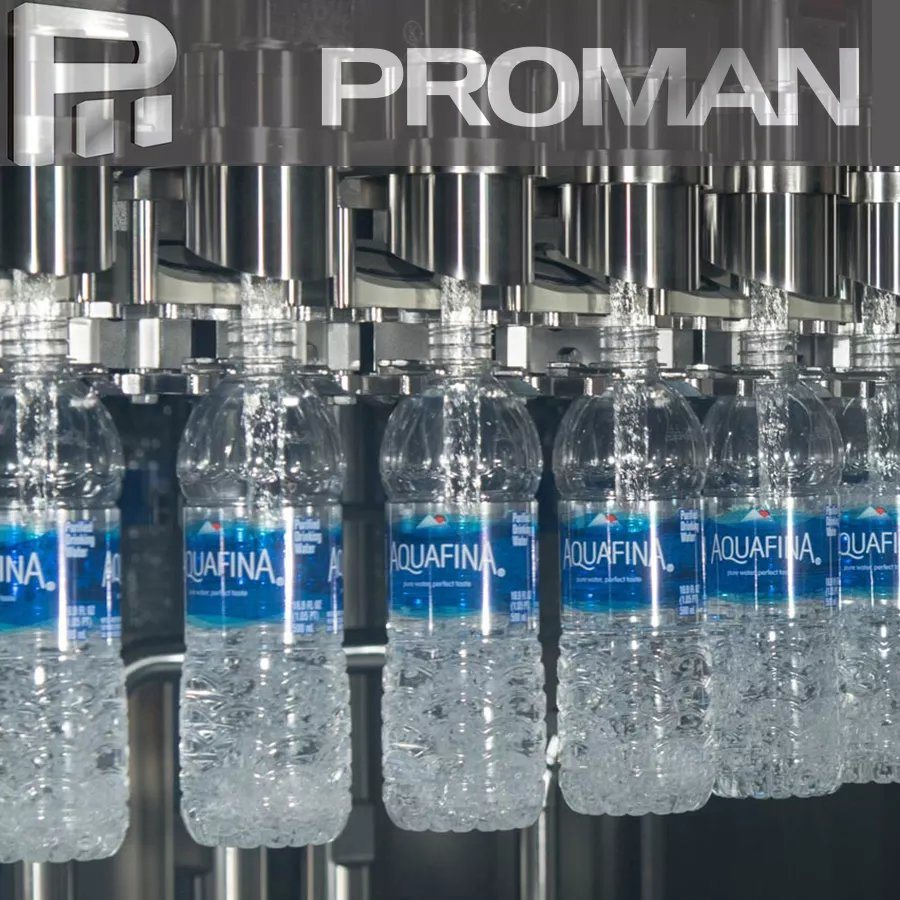

Automated 500ml PET Glass Bottle Bottling Drink Filler Small Beverage Juice Spring Still Water Filling Sealing Capping System
Different models can satisfy various requirement of output from 2000B/H to 24000B/H. The machine adopts advanced Mitsubishi programmable controller (PLC) to control automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running states with a high degree of automation and easy operation.
Technical Parameters
| Model |
CGF14-12-4 |
CGF16-16-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-12 |
| Capacity(500ML) | 4000BPH | 6000BPH | 8000BPH | 12000BPH | 15000BPH | 18000BPH |
| Washing Heads | 14 | 16 | 18 | 24 | 32 | 40 |
| Filling Heads | 12 | 16 | 18 | 24 | 32 | 40 |
| Capping Heads | 4 | 5 | 6 | 8 | 10 | 12 |
| Suitable Bottle | PET Bottle, Plastic Bottle |
| Diameter of bottle | 55-110 MM |
| Height Of Bottle | 150-310 MM |
| Weight | 1500kg | 2000kg | 4000kg | 4500kg | 6000kg | 7800kg |
| Main Motor Power | 1.2kw | 1.5kw | 3kw | 3kw | 3kw | 5.5kw |
System Components

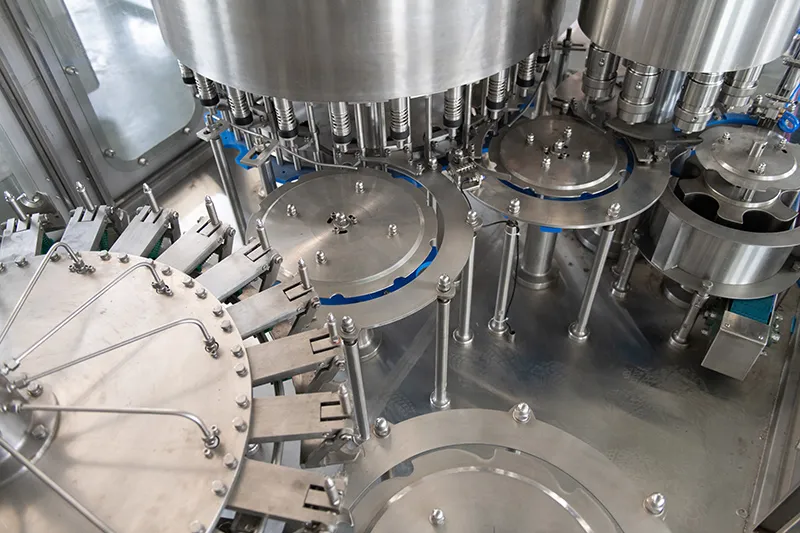

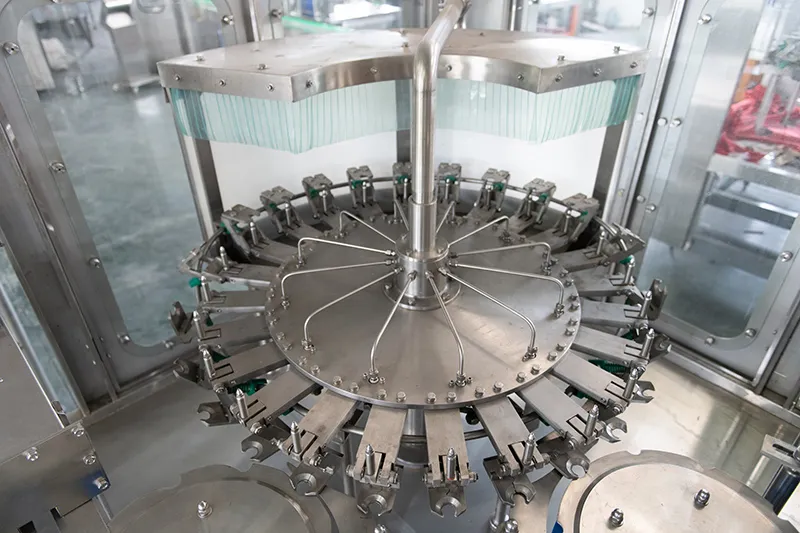

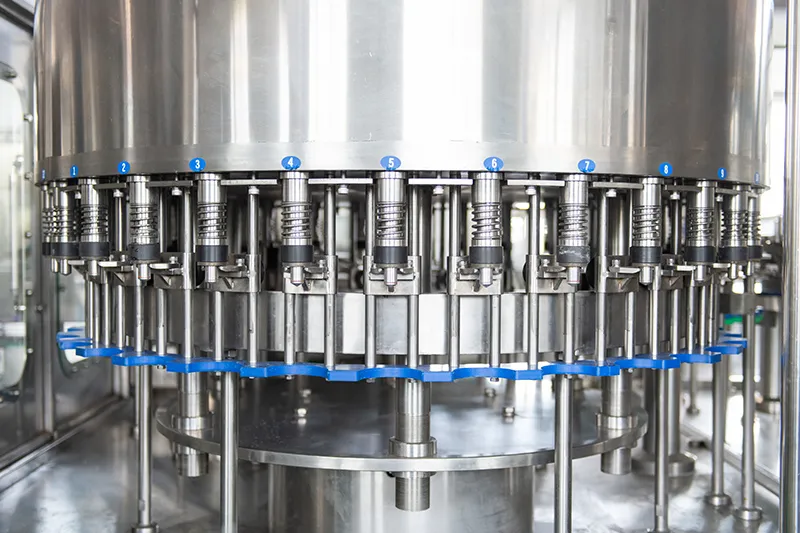

🔹 Washing Head

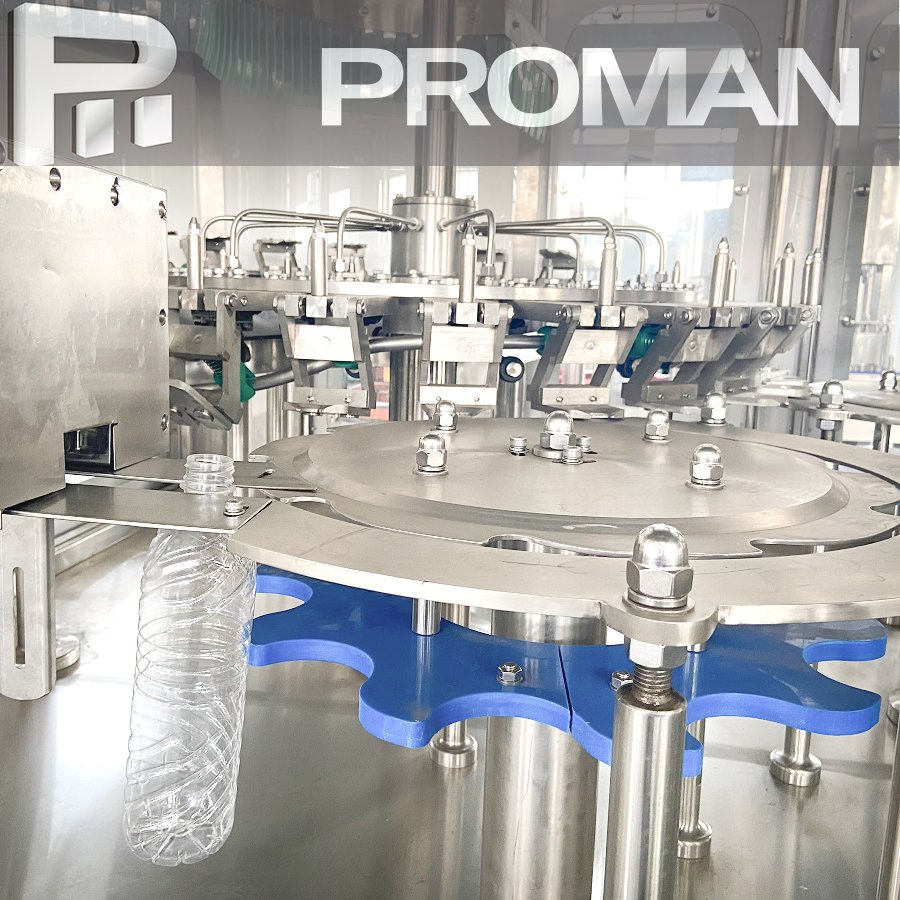

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design.
- Stainless steel Gripper with plastic pad ensures minimal bottle crash.
- Durable 304/316 stainless steel washing pump.

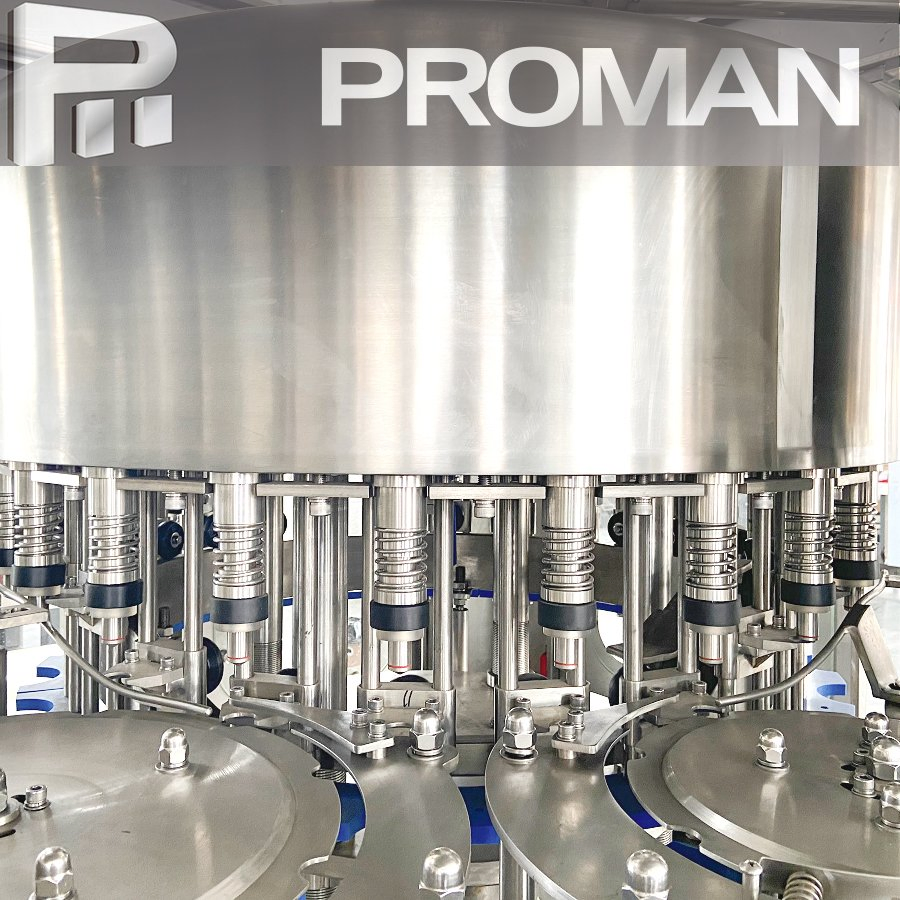

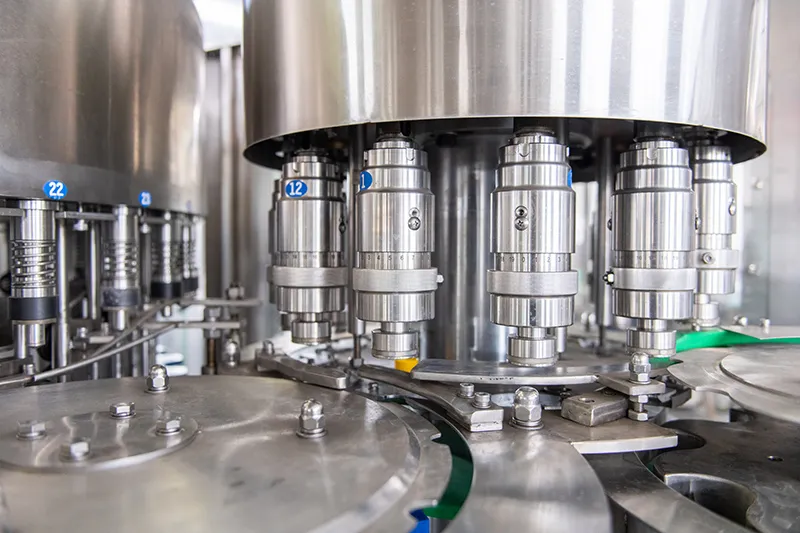

🔹 Filling Head
- High precision 304/316 stainless steel filling nozzle.
- Filling volume adjustable; maintains same liquid level after filling.
- Fine polish on all contact parts, no dead corners, easy to clean.
- Efficient spray nozzle to save water during flushing.

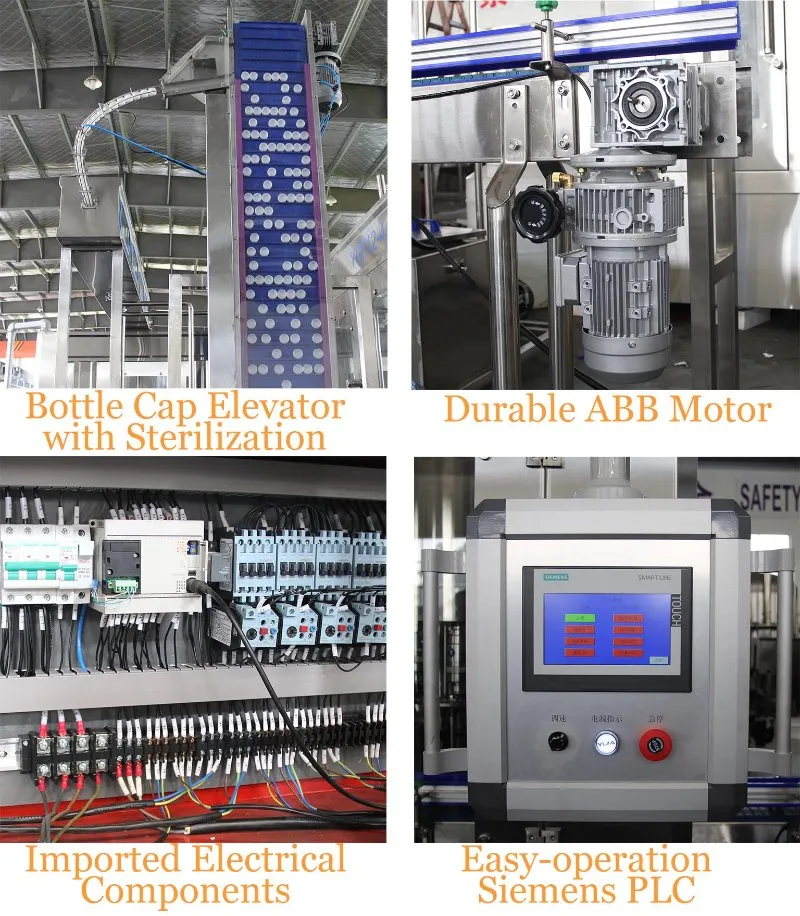

🔹 Capping Head
- Electromagnetic capping heads with burden discharge function.
- No bottle no capping system; automatic stop when lack of bottle.
- Stable and reliable capping effect, Defective rate ≤0.2%.
- Full 304/316 stainless steel construction.
Core Advantages

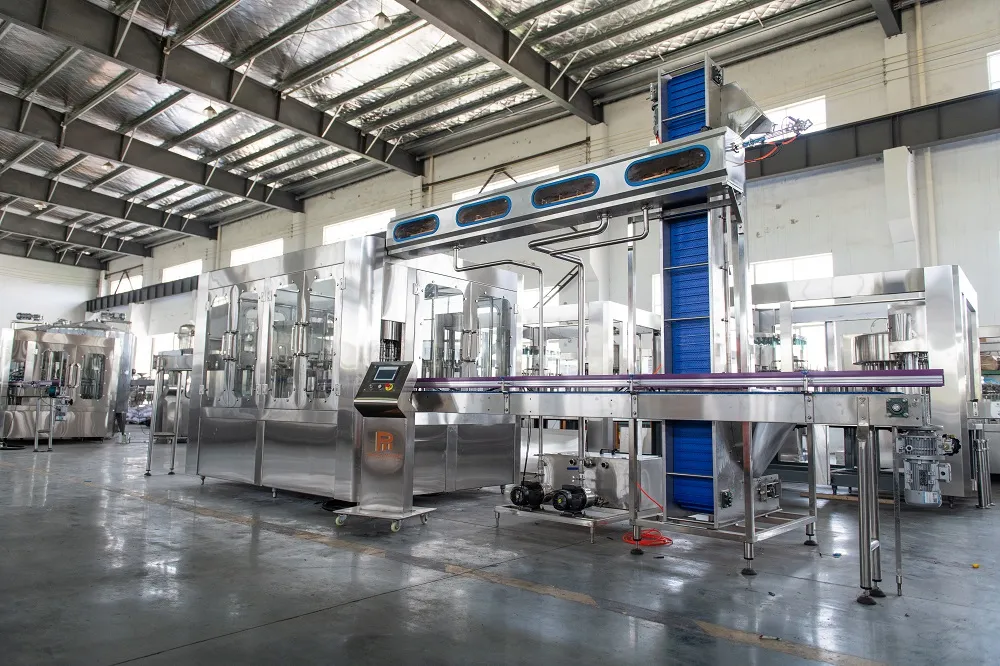

Space Saving: Washing, Filling, and Capping finished in one machine.
Bottle Versatility: Advanced bottle neck clamping technology for easy changes.
Easy Operation: Equipped with advanced programmable PLC and touch screen.
Global Standard: Electronic and pneumatic elements from famous international brands.
High Hygiene: All parts touching water are made of high-quality stainless steel.
Team & Packing
Certifications
Frequently Asked Questions
1. How can I send an inquiry about the water filling machine?
You can contact us via email, phone, or instant messaging platforms. Please specify your production requirements such as capacity and bottle type for a precise quote.
2. Is technical support available for installation and training?
Yes, we have a professional team of engineers with extensive experience in overseas installation, debugging, and staff training.
3. What is the warranty period for your machines?
We offer a 1-year quality guarantee on our machines along with life-long technical support to ensure your production runs smoothly.

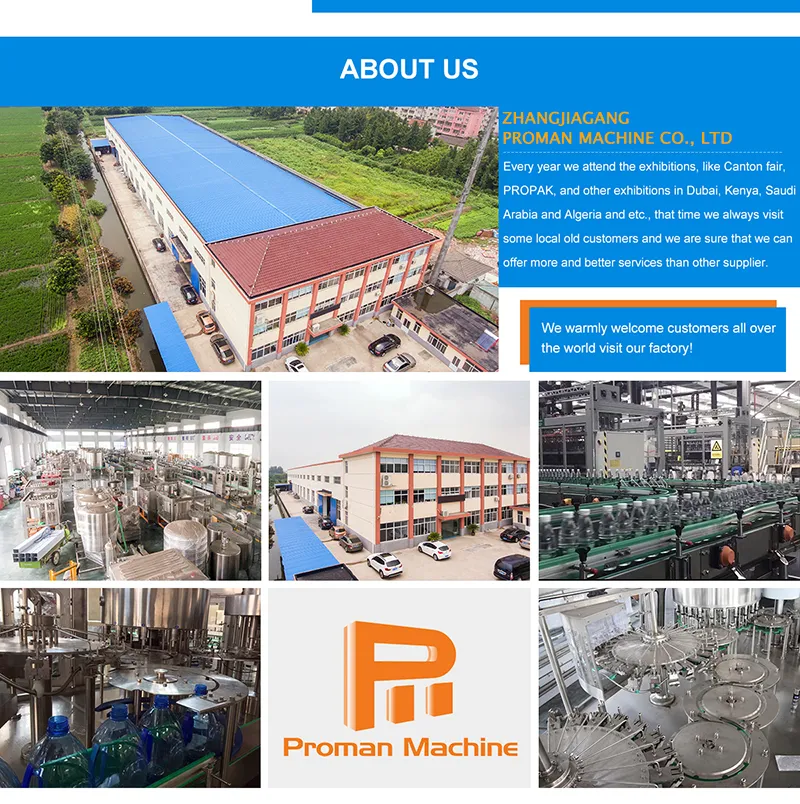

4. Can I visit your factory to see the machines in operation?
Absolutely. We warmly welcome customers to visit our factory. We can arrange pick-up services from nearby airports or train stations for your convenience.
5. What materials are used for the parts that come into contact with liquids?
All contact parts and liquid tanks are made of high-quality SS304 or SS316 stainless steel, ensuring high hygiene standards and durability.
6. Does the machine support different bottle sizes?
Yes, the machine uses advanced bottle neck clamping technology, making it very convenient to switch between different bottle sizes within the supported range.
