China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
1 / 5
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory
China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory

China Large Capacity of Vacuum Feeder / for PP/PE/PC/ABS/Pet /Factory

Customization: Available
Capacity(t/h): 700kg/Hr
Motor Power(kw): 4kw
Send Inquiry

Product Description

Overview Product Description Hot Product Company Profile Packaging & Shipping FAQ

Basic Info & Technical Overview

Model NO.
XTL-5HP
Usage
Plastic Materials
Volume of Material Hopper
18L
Material Hopper LWH
430X440X500mm
Type
Induction
Movement Mode
Vacuum Feeder
Overall Dimension
700X500X950mm
Transport Package
Wooden Package
Specification
XTL-5HP
HS Code
8428200000
Production Capacity
200 Sets/Month

Product Description

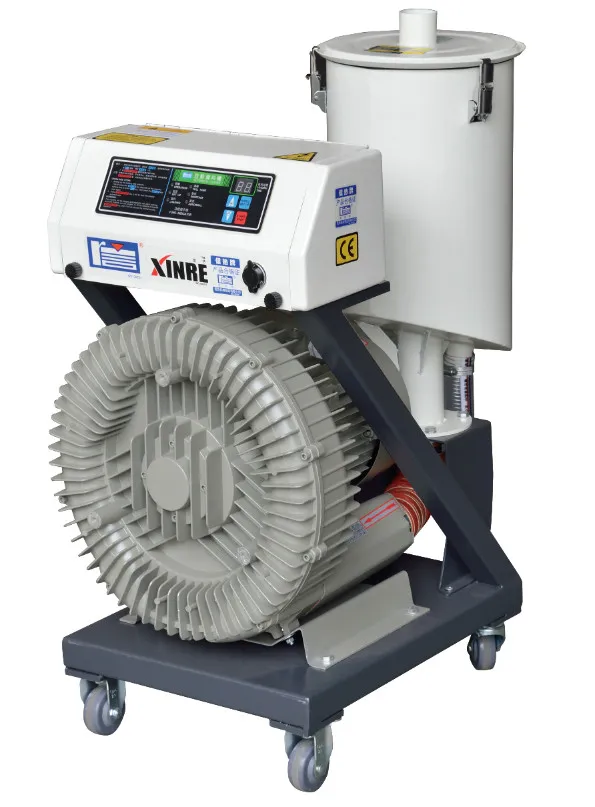

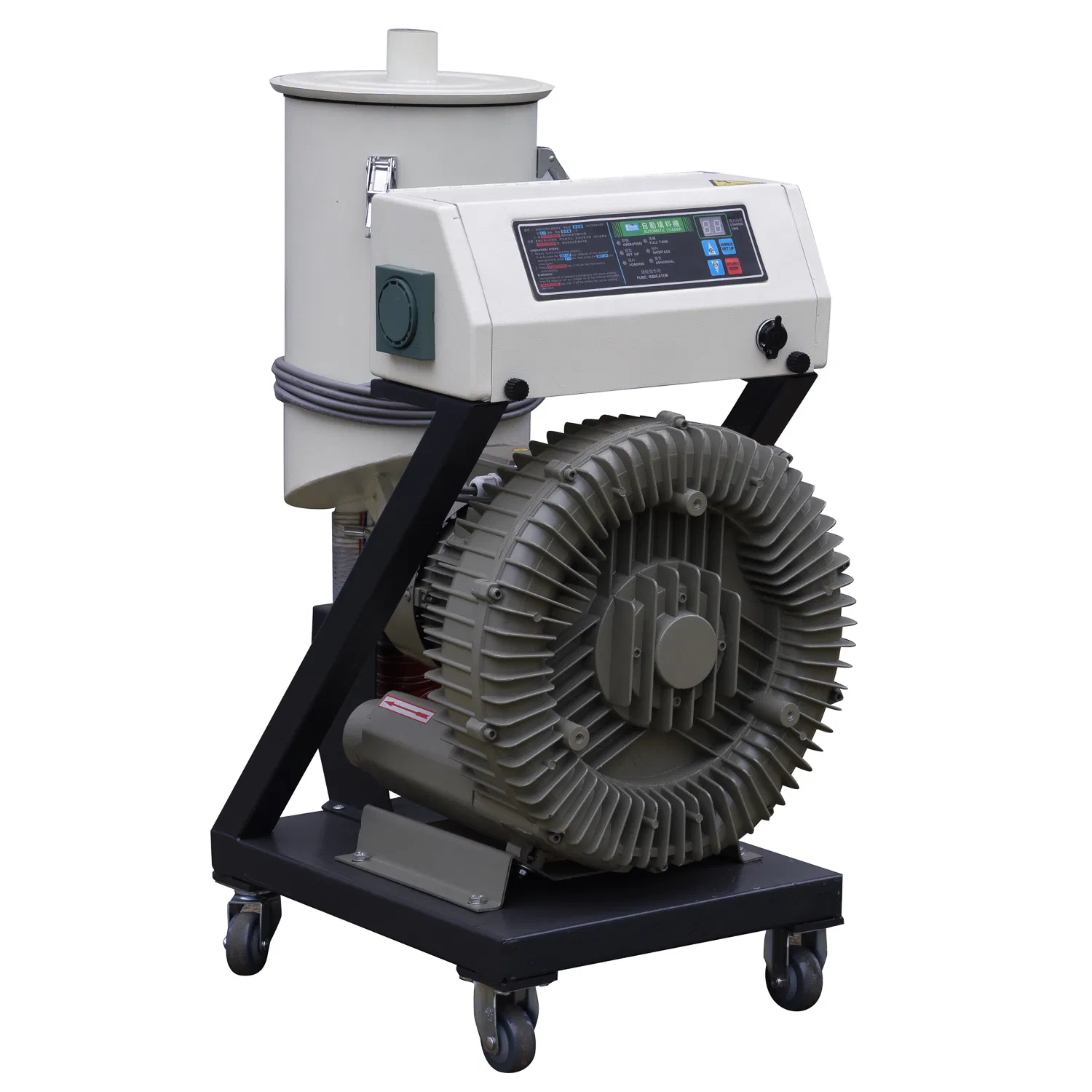

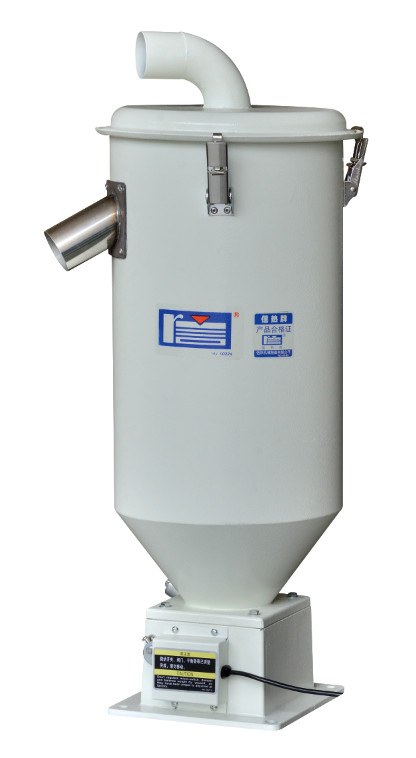

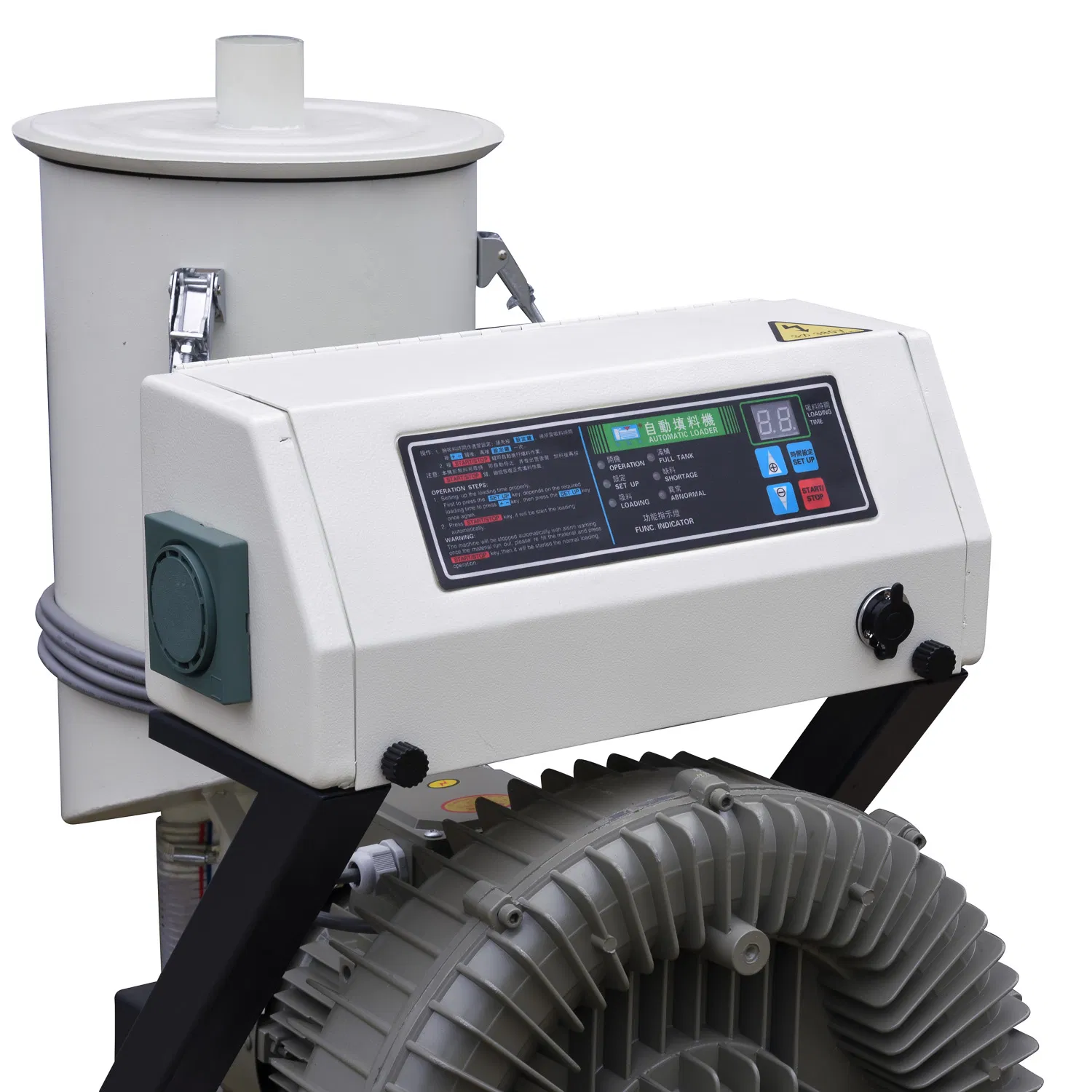

Large Capacity of Vacuum Feeder
  • The main engine and the material hopper are designed separately, ensuring safety, simplicity, and convenient operation.
  • The entire operation is controlled by a MicroTrip computer interface.
  • Equipped with an independent filter structure, allowing for quick and efficient dust clean-up.
  • An integrated high-performance muffler reduces operating noise considerably.

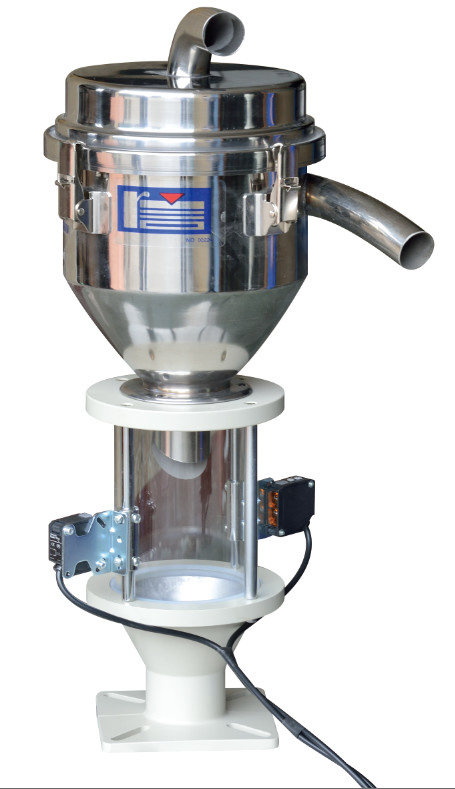

  • Stainless steel material hopper is highly durable, lightweight, and easy to clean.
  • The separated control box layout facilitates maintenance tasks and protects internal electrical mechanisms.
  • Auto-buzzer provides instant alerts when material is lacking, alongside a protective device guarding the motor from overloading.
Model XTL-3.5HP XTL-5HP XTL-7.5HP XTL-10HP
Motor Type Induction Induction Induction Induction
Specification 3000w 3Φ 4000w 3Φ 5500w 3Φ 7500w 3Φ
Conveying Capacity 600kg/hr 700kg/hr 1100kg/hr 1500kg/hr
Static Wind Pressure 2200mmAq 2200mmAq 2500mmAq 2800mmAq
Filter Φ 185x260H Φ 185x260H Φ 185x260H Φ 185x260H
Volume of Material Hopper 18L 18L 18L 18L
Inside Diameter of Conveying Pipe Φ 50mm Φ 50mm Φ 50mm Φ 63.5mm
External Dimensions Main Body LWH 700x500x950mm 700x500x950mm 700x600x950mm 750x650x950mm
Material Hopper LWH 430x440x500mm 430x440x500mm 430x440x500mm 430x440x500mm
Weight Main Body 72kg 82kg 120kg 130kg
Material Hopper 7kg 8kg 8kg 8kg
Technical Specifications Blueprint Drawing

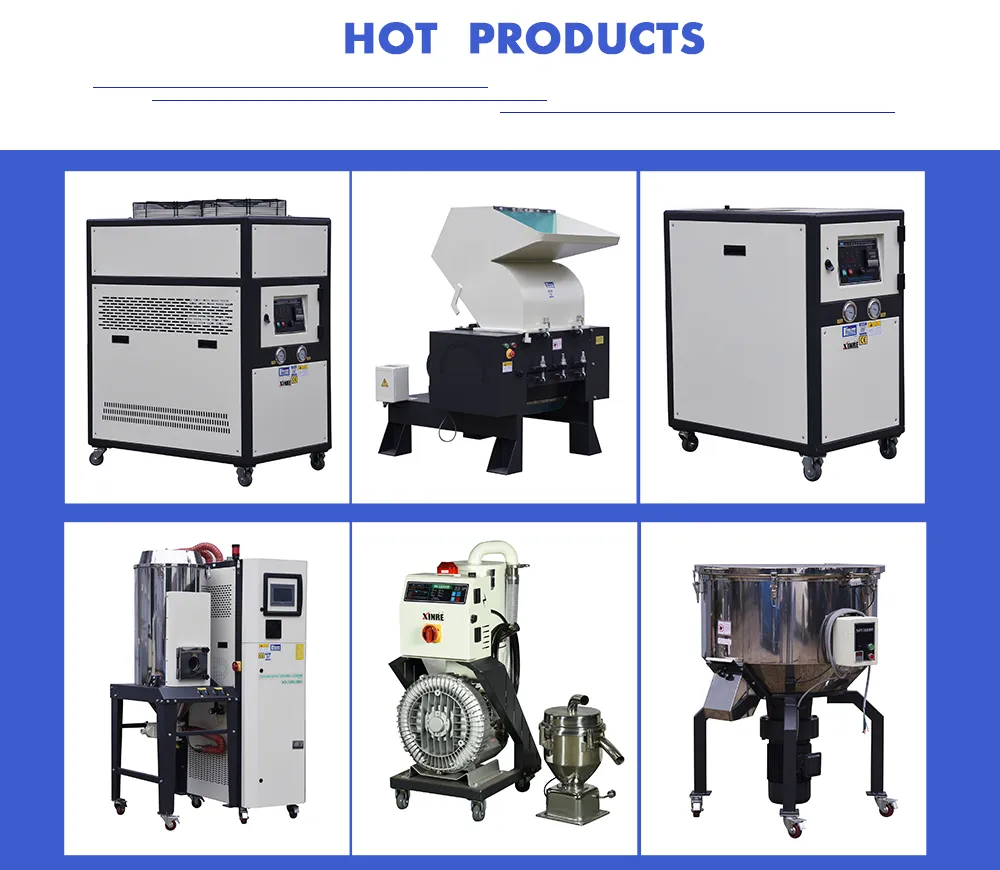

Hot Product Selection

Hot Products Collection Showcase

Production & Manufacture Base

Production Workshop Aerial view Advanced machinery and production environment Assembly and processing warehouse facility
Technical Strength and Equipment Quality Standards

Packaging & Shipping Details

Wooden Box Packaging and International Shipping Layout

Frequently Asked Questions

Q What is the industry experience of your factory team?
Our technical engineers possess over 20 years of solid industry experience. We are fully committed to the research, development, and automatic integration of high-quality injection molding peripheral and refrigeration equipment.
Q Do you support OEM and custom product configurations?
Yes, we accept OEM requests for this entire series of vacuum feeder products. Please feel free to reach out to inquire about customized data specifications.
Q What warranty terms do you provide for vacuum feeders?
We offer a standard one-year warranty against any product quality issues. Additionally, our professional support engineers are available to provide direct technical communication and assistance via video call.
Q What is the delivery period and supported shipping terms?
The general delivery period ranges between 10 to 20 days. We fully support standard factory deliveries as well as FOB terms.
Q What are the standard terms and methods of payment?
Shipments are executed upon receipt of 100% payment prior to departure. We support flexible international payment methods, including T/T, L/C, Western Union, and others.
Q How do you guarantee product quality before shipment?
Every vacuum feeder undergoes rigorous factory testing under working load conditions. We ensure all mechanical components and computer controls are operating flawlessly prior to packaging inside protective wooden boxes.
